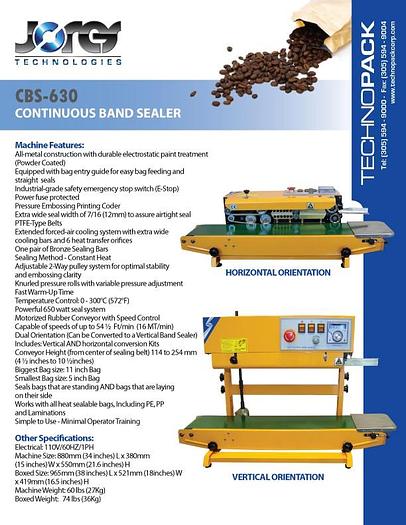

APOLO CONTINUOUS BAND SEALER, MODEL CBS-630

APOLO CONTINUOUS BAND SEALER, MODEL CBS-630

Contact us for price

Location:Burns, TN

orCall 615-441-3370

Description

This gently-used Apolo Continuous Band Sealer (Model #CBS-630) is a universal continuous band sealer for general bag sealing applications. This gently-used Apolo Continuous Band Sealer (Model #CBS-630) is a universal continuous band sealer for general bag sealing applications. This is an industrial-grade machine designed for light-duty continuous bag sealing applications. These small yet powerful units will seal bags made with thermoplastic materials including Polyethylene (PE), Polypropylene (PP) and heat-sealable laminations. Capable of sealing a wide range of bags such as stand-up pouches (Doypack), gusseted bags, pillow-type bags, sachets, barriers bags, etc. Typical products being packaged with these units include Aggregates, Coffee, Chemicals, Spices, Soaps, Sauces, Snacks, Cookies, Chocolates, Cereals, Dyes, Grains, MREs, Pastas, Pet Food, Pastries, Flours, Parts, Tortillas, Vegetables, any many other products. One unique feature of the JORESTECH 600 Series Band Sealers is that they can be converted (using a conversion kit, NOT INCLUDED) for both horizontal and vertical operation, a desirable feature that makes irrelevant the flow characteristics of the product being packaged. These are truly universal bag sealing machines designed to work for most entry-level continuous bag sealing applications where versatility, speed, and dependability are a must. Read below for more specifications. BASIC FEATURES: All-in-one continuous high-speed bag sealing system Makes strong, professional-looking airtight seals like those made by costly high-speed automatic systems Seals thermoplastic materials including Polyethylene (PE), Polypropylene (PP), BoPET (ie. Mylar), and heat-sealable laminations and cellulose (ie. Cellophane) Capable of speeds of up to 12 mts/min (40 ft/min), depending on product/bag seal characteristics Seals bags that are standing AND bags that are laying on their side (convertible to horizontal and to vertical operation) Includes motorized belt conveyor with synchronized speed adjustment Extremely easy to use MACHINE CHARACTERISTICS All-metal construction with durable electrostatic paint treatment (Powder Coated) Non-stick woven PTFE-type guide belts Extra wide 7/16 inch (12mm) seal Bag height range: 5 – 11 inches (125 – 280 mm H) Conveyour Width 6 inches Equipped with electronic adjustable speed control Adjustable 2-Way pulley system for optimal bag stability Equipped with bag entry guide for easy bag feeding and straight seals Extended forced-air cooling system with extra-wide cooling bars and 6 heat transfer orifices Knurled pressure rollers with variable pressure adjustment Sealing method: constant heat Single pair of bronze sealing bars Analog Temperature Controller: 0 - 300°C (572°F) Control panel includes E-Stop (industrial quick-stop switch) Dual-orientation system includes vertical AND horizontal conversion kits (Can be used both as a horizontal and as a vertical Band Sealer) Conveyor height from conveyor to center of sealing belt (at vertical configuration): 114 to 254 mm (4 ½ inches to 10 ½inches) OTHER SPECIFICATIONS: Fast Warm-Up Time Simple to Use - Minimal Operator Training Embossing Coder Compatible Electrical: 110V/50-60Hz Machine power: 650 Watts Power fuse protected Machine Size: 880mm (34 inches) L x 380mm (15 inches) W x 550mm (21.6 inches) H Boxed Size: 965mm (38 inches) L x 521mm (18 inches) W x 419mm (16.5 inches) H Machine Weight: 60 lbs (27Kg) Boxed Weight: 74 lbs (36Kg) This is an industrial-grade machine designed for light-duty continuous bag sealing applications. These small yet powerful units will seal bags made with thermoplastic materials including Polyethylene (PE), Polypropylene (PP) and heat-sealable laminations. Capable of sealing a wide range of bags such as stand-up pouches (Doypack), gusseted bags, pillow-type bags, sachets, barriers bags, etc. Typical products being packaged with these units include Aggregates, Coffee, Chemicals, Spices, Soaps, Sauces, Snacks, Cookies, Chocolates, Cereals, Dyes, Grains, MREs, Pastas, Pet Food, Pastries, Flours, Parts, Tortillas, Vegetables, any many other products. One unique feature of the JORESTECH 600 Series Band Sealers is that they can be converted (using a conversion kit, NOT INCLUDED) for both horizontal and vertical operation, a desirable feature that makes irrelevant the flow characteristics of the product being packaged. These are truly universal bag sealing machines designed to work for most entry-level continuous bag sealing applications where versatility, speed, and dependability are a must. Read below for more specifications. BASIC FEATURES: All-in-one continuous high-speed bag sealing system Makes strong, professional-looking airtight seals like those made by costly high-speed automatic systems Seals thermoplastic materials including Polyethylene (PE), Polypropylene (PP), BoPET (ie. Mylar), and heat-sealable laminations and cellulose (ie. Cellophane) Capable of speeds of up to 12 mts/min (40 ft/min), depending on product/bag seal characteristics Seals bags that are standing AND bags that are laying on their side (convertible to horizontal and to vertical operation) Includes motorized belt conveyor with synchronized speed adjustment Extremely easy to use MACHINE CHARACTERISTICS All-metal construction with durable electrostatic paint treatment (Powder Coated) Non-stick woven PTFE-type guide belts Extra wide 7/16 inch (12mm) seal Conveyour Width 6 inches Equipped with electronic adjustable speed control Adjustable 2-Way pulley system for optimal bag stability Equipped with bag entry guide for easy bag feeding and straight seals Extended forced-air cooling system with extra-wide cooling bars and 6 heat transfer orifices Knurled pressure rollers with variable pressure adjustment Single pair of bronze sealing bars Control panel includes E-Stop (industrial quick-stop switch) Dual-orientation system includes vertical AND horizontal conversion kits (Can be used both as a horizontal and as a vertical Band Sealer) Conveyor height from conveyor to center of sealing belt (at vertical configuration): 114 to 254 mm (4 ½ inches to 10 ½inches) OTHER SPECIFICATIONS: Fast Warm-Up Time Simple to Use - Minimal Operator Training Embossing Coder Compatible Power fuse protected

Specifications

ManufacturerUnknown
ConditionUsed
Stock NumberAP-630
Bag height range5 – 11 inches (125 – 280 mm H)
Sealing methodconstant heat
Analog temperature controller0 - 300°C (572°F)
Electrical110V/50-60Hz
Machine power650 Watts
Machine size880mm (34 inches) L x 380mm (15 inches) W x 550mm (21.6 inches) H
Boxed size965mm (38 inches) L x 521mm (18 inches) W x 419mm (16.5 inches) H
Machine weight60 lbs (27Kg)
Boxed weight74 lbs (36Kg)
