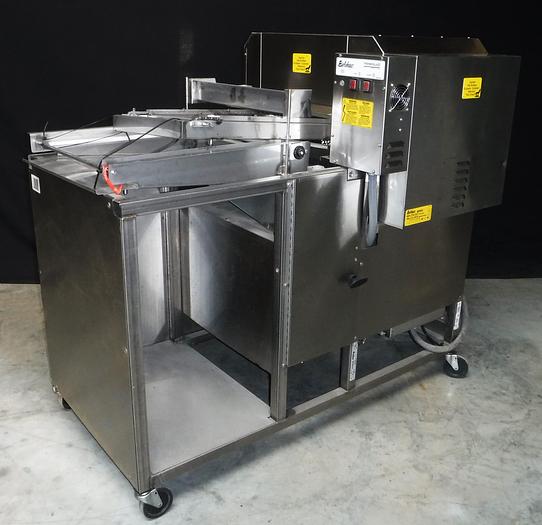

HIDDEN -- USED Belshaw Thermoglaze, Model TG-56

HIDDEN -- USED Belshaw Thermoglaze, Model TG-56

Contact us for price

Burns, TN

Description

USED Belshaw Thermoglaze, Model TG-50 Volts: 208 Amps: 32.2 Watts: 6.7 kw Hertz: 60 Single Phase Plug: 360P6W (Consult factory at time of order) Cord: 72" (1.8m) Serial No W07090087

TG50 uses uses glazing screens 17" x 25" holding 24 donuts each, Part Number SL200-0004. At least 24 screens recommended


THERMOGLAZE TG50 Frozen Donut System For retailers who want to produce fresh tasting, high-quality, attractive donuts without the labor and equipment necessary to prepare and fry donuts from scratch, Belshaw Adamatic's Thermoglaze is the solution. Thermoglaze TG50 is a system that re-heats and glazes pre-fried frozen donuts and other baked goods, with results that equal (and often surpass) the quality of freshly made product.

• The ThermoglazeTG50 can process all the varieties of frozen donuts currently available including ring donuts, fritters, long johns, cream and jam-filled donuts and many others. Thermoglaze is easy to operate, can be used in front of customers, and requires no ventilation hood.

• The Thermoglaze TG50 processes approximately 50-75 dozen donuts per hour. Heating time and temperature can be modified to suit any preference.

• Frozen donuts (or similar product) are first thawed in a proofer at approximately 105°F (40°C). Donuts can be held in a proofer for up to five hours before processing in the TG50.

• After thawing/holding in a proofer, the screens full of donuts are placed on the TG50's conveyor for heating and glazing. This takes less than 5 minutes.

• Glaze is pumped up to a dispenser which coats each donut with a 1/8” thick curtain of glaze as they pass through. For iced donuts, the flow of glaze is turned off, and donuts can be iced on a Belshaw H&I-2 or H&I-4 icer.

• The TG50 uses 17 x 25 inch glazing screens, Belshaw Part Nbr. SL200-0004. Each screen holds 2 dozen donuts. 24 or more screens are recommended.

THERMOGLAZE TG50 STANDARD FEATURES • Simple 2-switch operation (Oven and Glazer) • Capacity 50-75 dozen donuts/hour • No ventilation hood or fire suppression system normally required. (Verify with local authorities) • Heavy duty glaze pump • Speed and temperature adjustable inside control box • Quiet operation • Glaze pump can be switched on/off as required • All stainless steel construction • Easy to clean oven interior • 4" (25mm) casters, locking • Lock-out feature to prevent machine starting while cleaning is in progress • 24 to 60 screens are recommended depending on the amount of donuts produced • TG50 208V/60/1 is ETL certified to UL-197, CSA C22.2 and NSF-4

Specifications

ManufacturerBelshaw
ConditionUsed
Stock Number0001432
Volts208
